Hydroxyapatite thermal grade powder is a high-purity synthetic material that has gained widespread recognition for its extensive use in biomedical applications.
Particularly in coating implants, bone grafting, and filling bone defects. Its thermal stability, biocompatibility, and structural similarity to natural bone make it an ideal choice for medical and cosmetic applications.
Hydroxyapatite bone regeneration is a key area in which this material excels.
Chemical Composition, Purity & Structural Properties
Chemical Composition and Purity
The chemical composition of hydroxyapatite is represented by the formulas Ca₅(PO₄)₃(OH) or Ca₁₀(PO₄)₆(OH)₂, with a formula weight of 502.31 g/mol.
Assay Purity ≥ 99% ( ISO 13779-3 Specification)
This material is available with an assay purity of ≥99% on a XRD basis, ensuring exceptional chemical purity and suitability for advanced clinical and biomedical applications.
Morphology and Structural Properties

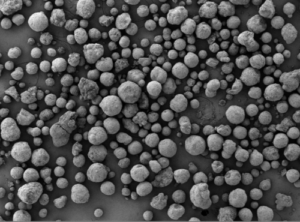

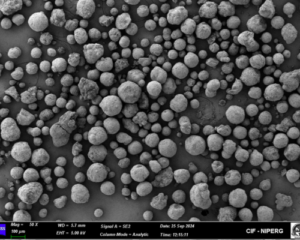

Hydroxyapatite Thermal Spray Powder for orthopedic applications and Dental Implants is typically spherical, spray-dried, or granulated, ensuring uniform coating performance. Its optimized particle morphology enhances flowability, dispersibility, and application consistency for high-performance biomedical coatings.
How Thermal Spray Coating Works
Powder Feed
Spherical, spray-dried HA particles (45–60 μm) are fed into the plasma torch.
Plasma Melt
Particles partially melt in the high-temperature plasma jet on flight to the substrate.
Coating Bond
Molten droplets impact the implant surface and bond into a dense, adherent layer.
Osseointegration
Coating bonds directly to bone, releasing Ca²⁺ and PO₄³⁻ for earlier fixation.
Hydroxyapatite for Orthopedic Implants & Bone Healing
One of the primary applications of Hydroxyapatite is in orthopedic and dental implants. The material is used to coat metal implants, enhancing osseointegration by providing a bioactive interface that promotes bone cell adhesion and proliferation. This coating improves implant stability and longevity.
Hydroxyapatite thermal spray for bone healing acts as an osteoconductive material that facilitates bone regeneration and repair. Its use in bone grafting and filling bone defects is particularly beneficial in orthopedic surgery, helping restore structural integrity and promote healing.
Biocompatible Implant Coating Powder
To enhance the success rate of implants, various surface modification techniques have been developed. Biocompatible implant coating powder releases calcium and phosphate ions, regulating the activation of osteoclasts and osteoblasts, which are essential for bone regeneration.
Thermal Spray HA Powder for Bone Healing
Hydroxyapatite thermal spray for bone healing acts as an osteoconductive material that facilitates bone regeneration and repair — particularly beneficial in orthopedic surgery for restoring structural integrity.
Bioceramic Properties & Surface Modification
Hydroxyapatite is a bioresorbable ceramic widely used in orthopedics and dentistry due to its excellent biocompatibility and chemical interactions. Hydroxyapatite Thermal Spray Powder for Teeth Implants enhances osteoconductivity, promoting bone growth and mineralization through ion release control and encapsulating growth factors. The use of Thermal Spray Hydroxyapatite Powder for Bone Healing enhances the regeneration of bones, improving implant fixation and stability.
The continuous effort to improve the durability of Hydroxyapatite for orthopedic implants has led to the development of high-quality coatings and hydroxyapatite-based composite coatings. Plasma-sprayed hydroxyapatite coatings can bond directly to bone, promote earlier and greater fixation, enhance bone in growth, and protect the surrounding bone against metal-ion release from metallic implants.
Hydroxyapatite thermal grade powder is a cutting-edge material that combines biocompatibility, superior thermal properties, and structural integrity. Whether for enhancing implant coatings or developing innovative bone grafting solutions, this material offers unmatched performance tailored to modern biomedical needs.
Methods Used to Deposit HA Coatings
Currently, plasma spraying is the most popular and FDA-approved method for applying calcium phosphate (CaP) coatings to implant surfaces. Various methods have been used to deposit HA coatings, such as:
Plasma SprayingFDA-Approved · Gold Standard
The most popular and FDA-approved method for applying calcium phosphate (CaP) coatings to implant surfaces.
HVOF CombustionHigh-Velocity Oxy-Fuel · Flame Spraying
Thermal spraying techniques such as flame spraying and high-velocity oxy-fuel (HVOF) combustion spraying.
Dip Coating–SinteringLiquid-Phase Process
Substrate is immersed in HA suspension and then sintered to consolidate the coating layer.
Immersion CoatingWet-Chemical Deposition
HA layer is built up directly on the substrate through controlled immersion in coating media.
Electrophoretic DepositionEPD · Electric-Field Driven
Charged HA particles are driven onto a conductive substrate under an applied electric field.
Hot Isostatic PressingHIP · High Pressure + Temperature
Coating is densified under combined high pressure and temperature to eliminate porosity.
Solution DepositionChemical Route
HA is deposited from solution chemistry directly onto the implant surface.
Ion-Beam Sputter CoatingPhysical Vapour Deposition
HA is sputtered onto the substrate using an ion beam, producing a dense, conformal film.
These techniques ensure that Thermal spray hydroxyapatite powder for bone healing bonds directly to bone, promoting earlier fixation and enhancing bone ingrowth.
The Future of Hydroxyapatite in Biomedical Engineering
As advancements in biomedical engineering and materials science continue, Hydroxyapatite thermal spray for dental implants and orthopedic applications are expected to revolutionize various industries, improving patient outcomes and enhancing the quality of life.
Implant Coatings
Enhanced osseointegration and longevity through plasma-sprayed hydroxyapatite coatings on metal implants.
Dental Implant Coatings
Hydroxyapatite thermal spray for dental implants — bioactive interfaces that promote bone cell adhesion.
HA-Based Composite Coatings
Innovative bone-grafting solutions and composite coatings tailored to modern biomedical needs.
Whether for enhancing implant coatings or developing innovative bone grafting solutions, this material offers unmatched performance tailored to modern biomedical needs. As part of this innovation, Sustainable Biomaterials are gaining attention for their role in advancing the safety and durability of medical implants.
Frequently Asked Questions
01 What is the purity and particle size of your thermal spray hydroxyapatite powder?
Our hydroxyapatite thermal spray grade powder is supplied at 99% confirmed on an XRD basis. Standard particle size is 45–60 μm and is customizable on request. Every batch ships with a Certificate of Analysis (COA) confirming purity, particle size, and chemical composition (Ca₅(PO₄)₃OH, 502.31 g/mol).
02 What is thermal spray hydroxyapatite powder used for?
Thermal spray hydroxyapatite powder is mainly used for coating medical and orthopedic implants. It helps create a calcium phosphate layer on implant surfaces, which can support better bonding between the implant and natural bone. This makes it useful for applications such as hip implants, knee implants, dental implants, and other bone-contact medical devices.
03 Which coating methods is the powder compatible with?
The powder is engineered for thermal-spray techniques including plasma spraying, flame spraying, and high-velocity oxy-fuel (HVOF) combustion spraying. It is also compatible with alternative deposition methods: dip coating-sintering, immersion coating, electrophoretic deposition, hot isostatic pressing (HIP), solution deposition, and ion-beam sputter coating.
04 What is the minimum order quantity and what are typical lead times?
The minimum order quantity is 100 g, with bulk discounts available for larger volumes. Standard production lead time is 5–7 business days from order confirmation. Samples are available on request for qualification trials before commitment. We ship globally with full export documentation.
05 What documentation is provided with each shipment?
Every shipment includes a Certificate of Analysis (COA) confirming purity, particle size, and chemical composition; a Safety Data Sheet (SDS);Additional regulatory documentation for specific medical-device markets (including harmonised system codes for customs clearance) is available on request.
